Remote Terminal Units (RTU)

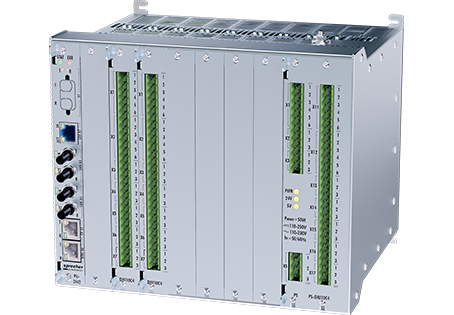

SPRECON-E-C
Due to the modular architecture and the facility of flexible configuration, SPRECON-E also acts as the appropriate solution for telecontrol.
The system allows configuration of new and modern telecontrol networks realised upon appropriate topologies. SPRECON-E components can be also integrated into existing networks without affecting the customer‘s philosophy in terms of system management and maintenance – a significant advantage for power utilities and infrastructures (electric power, gas, water, heating, etc.).
The devices can be operated via the detachable SPRECON-E-CP control panel with a colour display. SPRECON-V460 is applied as the superior SCADA.
SPRECON-E provides modules for direct or indirect process interfacing.
Electric power supply
-
High and medium voltage switchgear
-
Power plant control technology
-
Renewable energy
-
Traction power supply
-
Industrial networks
-
Smart Grid
Municipal utilities
-
Water supply
-
Sewage systems
-
Gas and oil supply
-
District heating & district cooling
-
Traffic control systems
Wide-ranging scalability
Showing a high scalability range, the devices are applied as remote control units for all types of plants and utilities. Through their modular design SPRECON-E devices can be easily configured for various customer-specific applications.
Based on three standard case sizes, the devices can be configured for almost every I/O range.
Standards like IEC 61850, IEC 60870-5-101, -103 and -104 allow communication and data transmission to the superior SCADA. In addition, various proprietary protocols can be used.
-
Configuration of multi-hierarchical networks with remote diagnostics and remote parameterisation
-
Integration into existing telecontrol networks as frontends and/or remote terminal units (i.e. outstations)
-
Various communication protocols
-
Integration of specific proprietary protocols
-
Dial-up networking (VPN, GSM, PSTN, etc.)
-
Integrated media converters (i.e. optical interface) and communication-modules (GPRS-modem, etc.)
-
Configurable automation functions (function block diagram according to IEC 61131-3)
-
Tunnelling functions for outstation messaging
-
Integrated switch and IP security (encryption)
-
Integrated firewall and routing functionality for highest security in telecontrol networks
SPRECON-E-Cx6
For applications with large data amounts, I/O numbers (depending on configuration): up to approx. 500 inputs or 240 outputs, up to 18 serial interfaces for IEC 60870-5-101/-104 and/or proprietary protocols (i.e. SAT 1703)
SPRECON-E-Cx4
For applications with medium data amounts, I/O numbers (depending on configuration): up to approx. 230 inputs or 140 outputs, up to 18 serial interfaces for IEC 60870-5-101/-104 and/or proprietary protocols (i.e. SAT 1703)
SPRECON-E-Cx2
For applications with small data amounts, I/O numbers (depending on configuration): up to approx. 100 inputs or 40 outputs, up to 14 serial interfaces for IEC 60870-5-101/-104 and/or proprietary protocols (i.e. SAT 1703)
